Company: Forge Motorsport

Turbo Inlet for Hyundai i20N

Product code: FMTIA11
£275.99 Inc. VAT £229.99 Exc. VAT (VAT will be added during the checkout process) Estimate Delivery

Please select options and qty below:

Check your vehicle compatibility

Addons:

More info Induction kit for Hyundai i20N - Read More
More info Hyundai i20N Atmospheric and Recirculating Dump Valve - This part replaces OEM Part No. 28234-2S300 - Read More

Have A Question? Read Instructions?

Prefer to talk over the phone? Call us +44 1452 380999

Description

Product Description

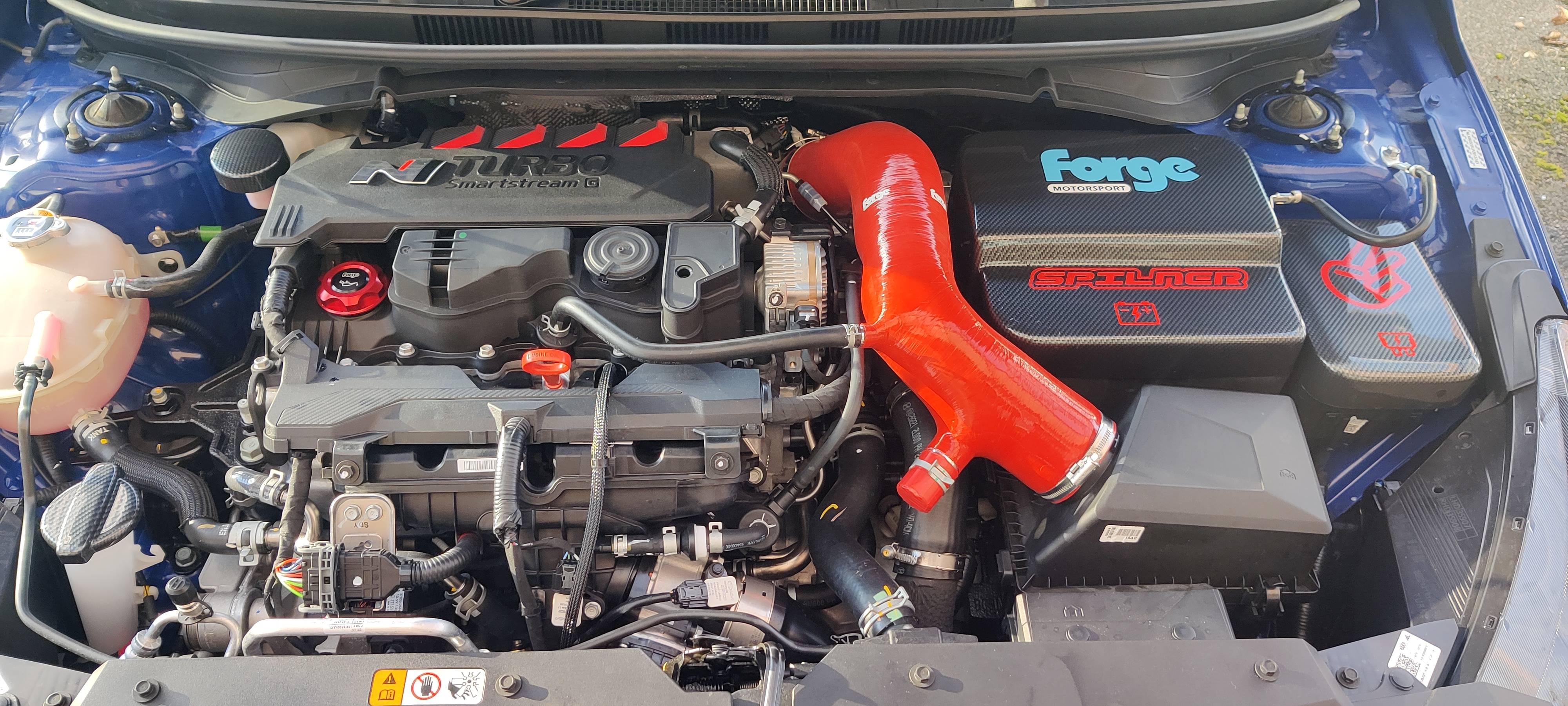

With Forge Motorsport leading the way in aftermarket products for the Hyundai N division vehicles, we are proud to present our Turbo Inlet Adaptor and Intake Tract for the Hyundai i20N. The kit is a full plug and play solution, with a replacement cast turbo inlet adaptor, CNC machined hose couplers, and a silicone high flow inlet hose. Available in a choice of Black, Red, and Performance Blue, the TIA11 will not only increase your Hyundai’s performance, but it also transforms the look and aesthetics of your vehicle’s engine bay.



The size of the inlet elbow has increased by over 170% to maximise the amount of air that can physically flow to the turbo from the inlet tract. The OEM factory alloy cast elbow is small, so we knew that this would be the key component to target as tuners start to increase the boost levels and performance output of the 1.6l turbocharged combustion engine. As well as this, the plastic OEM inlet hose has ribs and steps within the bore, causing detrimental turbulence while disturbing and slowing the airflow. By removing the ribs and steps, the larger Forge Motorsport silicone turbo inlet hose reduces the amount of turbulence over the standard item, enabling better airflow.

Why do we use silicone?

In the development process we tested an oversized aluminium pipe and found that it started to show signs of heat soak, this had a detriment to the impressive initial power gains. We also found after the third pull on the Dyno, the alloy pipe conducted too much heat on this application and started to decrease the gains. When using silicone, heat cannot be conducted as well, therefore even after six pulls, the silicone hose stayed at a steady temperature and did not decrease the power whatsoever.

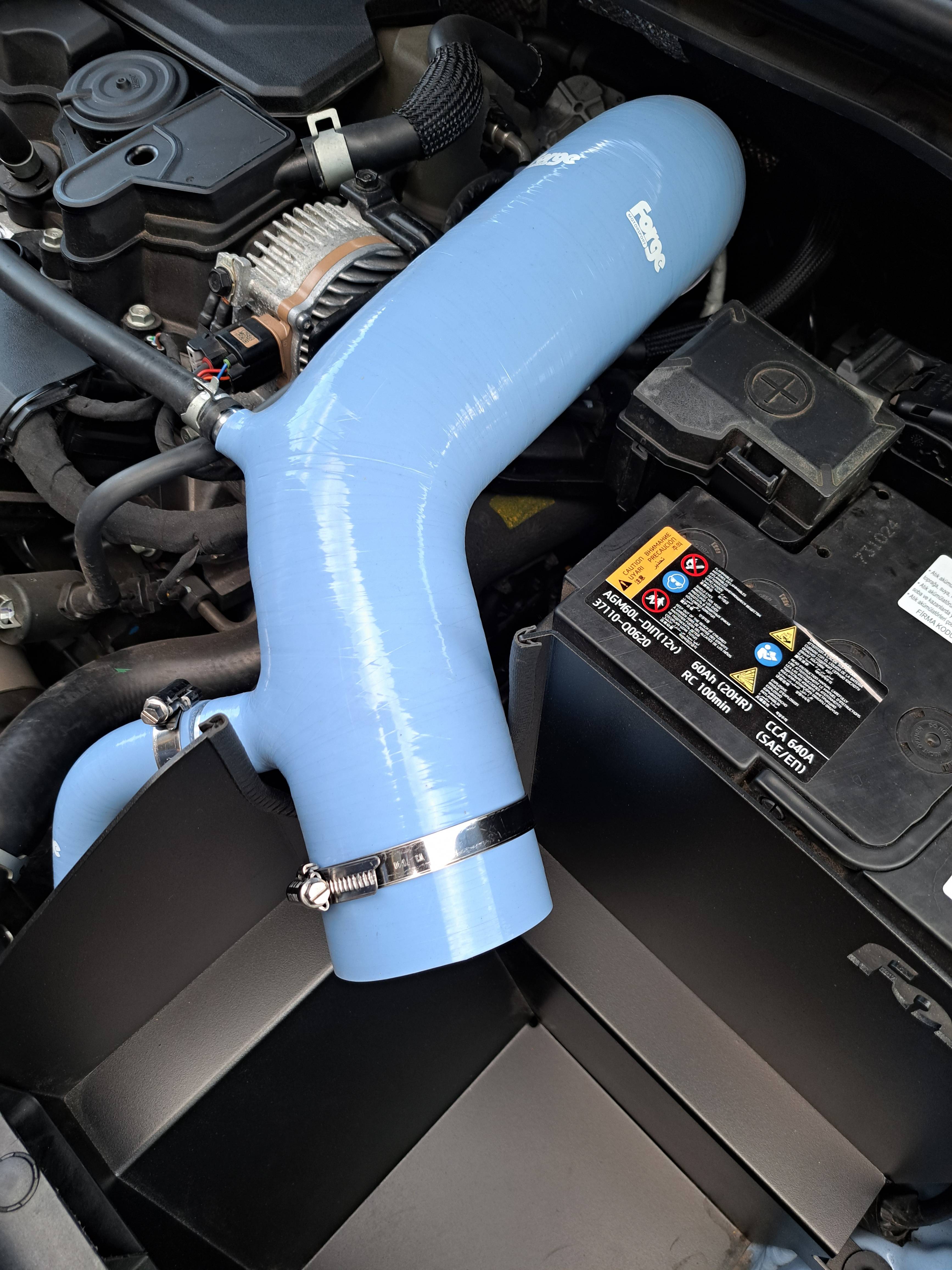

The inlet pipe fits directly to the factory airbox along with our FMINDK45 performance intake solution.

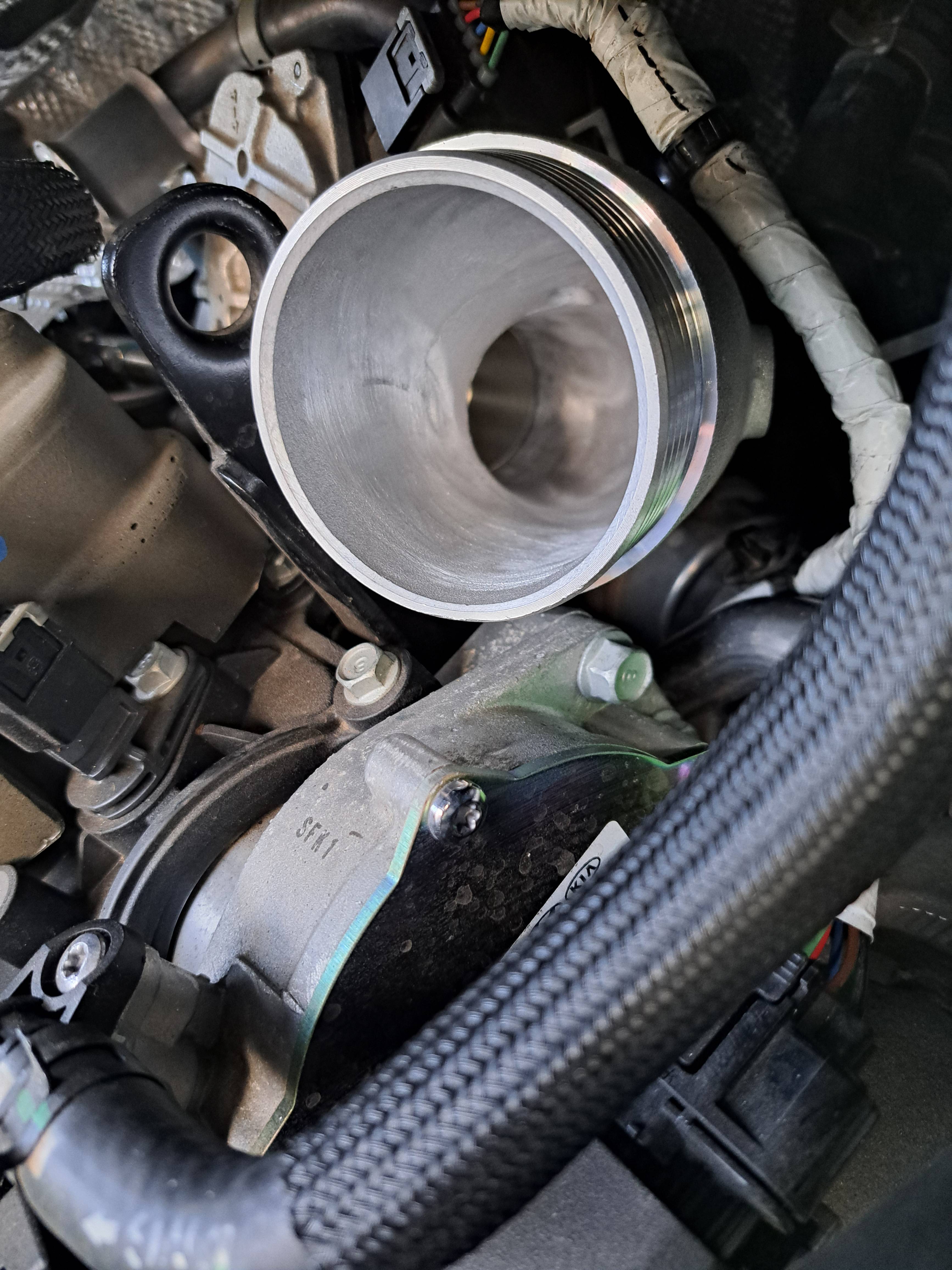

The turbo inlet adaptor improves your vehicles airflow in several ways; designed in a similar way to a conventional velocity stack, it routes the air directly into your turbo charger and allows more air to be compressed due to its larger capacity, this has a positive effect when accelerating your vehicle after long deceleration, or in-between gear changes, due to more air being kept within the intake system.

Dyno Results

Testing was completed using Performance Remap in Gloucester with their VTEC 4-wheel drive dynamometer, this was to ensure all our data is achieved with results as accurately as possible by an independent tuner.

As you can see from the dyno results below, peak power was increased from stock by nearly 7 BHP and 12NM of torque when mated to the OEM airbox and standard factory filter. The best news is that there are significant gains across the entire rev range, meaning that the car will pick up quicker and pull the whole way through to redline. TIA11 also benefits from a 17NM of power gain between 2500 RPM and 3000 rpm, this is right as the power comes in and can really change the feel and power delivery when behind the wheel.

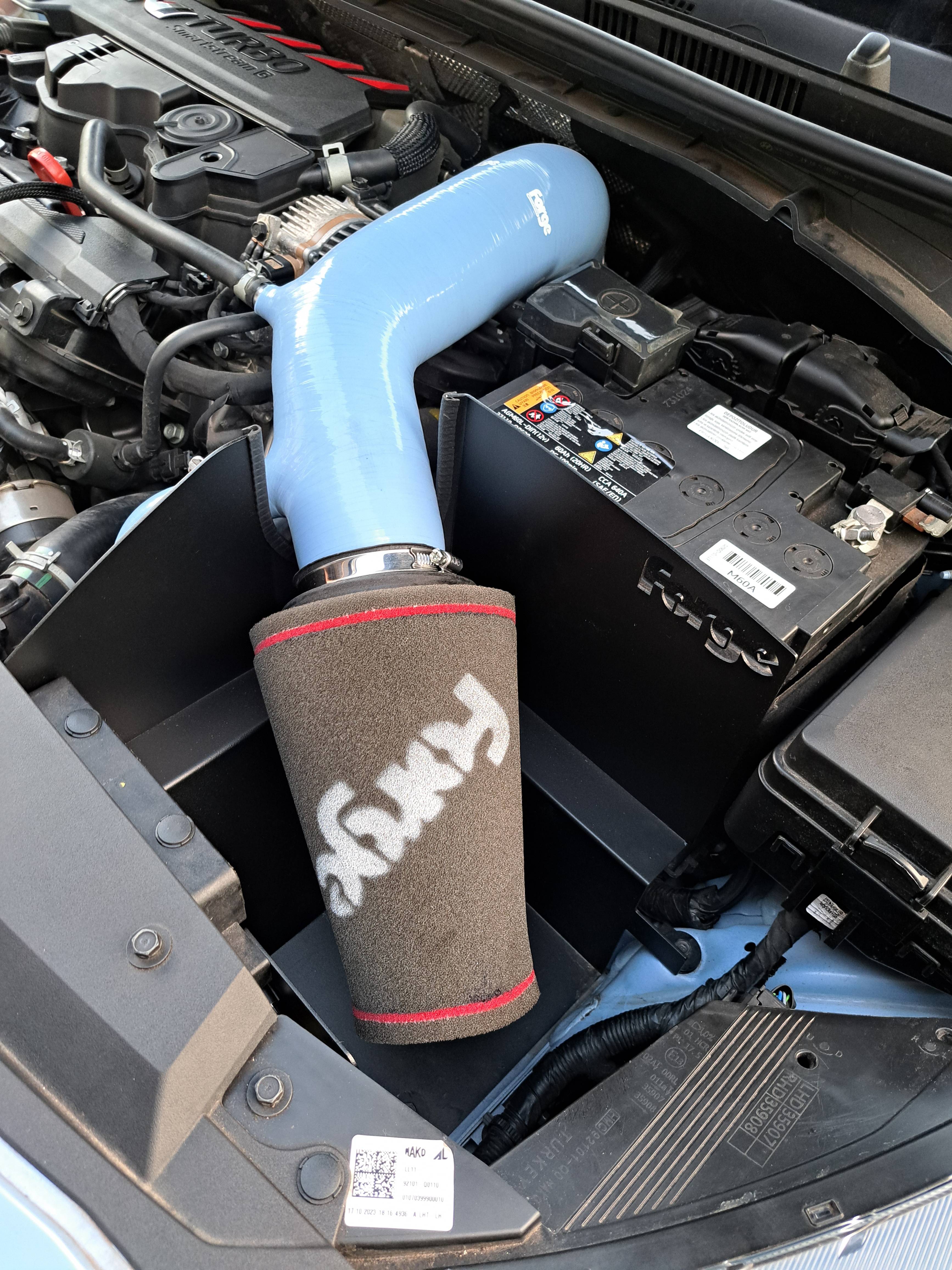

To compliment the turbo inlet, it can be matched to our induction kit FMINDK45. As you can see below this gave an increase of 12BHP and a torque increase of 20NM both at peak. These two products really do complement each other superbly both in conjunction, and as standalone modifications. After installing a tuning box, or re-calibrating the ECU with stage one or two tunes, the performance yields can be expected to be a lot higher than the figures stated.

Testing on the dyno certainly represents the benefits from such a well-engineered product; this coupled with our Lifetime Warranty is just the reason to choose Forge for your Hyundai’s performance hardware.

Complimentary Products



Check your vehicle compatibility: Click here

Please Note: In line with our policy to constantly review, revise, and improve our product range, the appearance of the product you receive may differ from the one advertised.

Product Reviews

Product Reviews

from on Nov 15th 2024 Verified Purchase
I bought the induction kit and the inlet, great fitment, very quality product, the best in the market!!
from on Nov 15th 2024 Verified Purchase
Great product, bought the complete inlet, great fitment, I think the best in the market!!
from on Jul 26th 2024 Verified Purchase
Great fitment and the online youtube video instructions are very helpfull
from on Dec 2nd 2023 Verified Purchase
Opted for red and did the install at the same time as the dump valve so i opted for atmo meaning i used the supplied bung but i wanted it to match so covered it in red electrical tape.

Install wasnt as awful as i thought but i did fall short in places, the main one was getting the bracket off the loom, the instructions dont quite mention the amount of force you need to 'slip' it off the connector, it took MUCH more force than i deemed safe to finally get it off, i also opted for 2 cable ties.
My other issue was more how my car was built, the kind builder put the hose clamp for the oil breather on the turbo inlet.... facing backwards so i could barely get any tools on it and its very thick meaning you cant do it with your fingers, especially not backwards! so i had to undo the turbo inlet and move it around with the hose still attached to finally get some purchase on the clamp... then i couldn't get the hoses to free up either.

As for fitting the new inlet that was pretty easy with a long 5mm allen extension to a flexible joint to another long extension to my socket ratchet.

Overall im happy with the install, took a couple hours doing both parts in the -2c morning i had

Want to leave a review?

Login Register FREE!

Compatible Vehicles

Click the triangles to find your car make and model. Note that the models listed here have either had the part fitted by us or a customer or they are listed as being compatible on industry parts databases. Where it has not been directly fitted by Forge there will then be a separate May Also Fit tab where the make and model will also appear and which details our no-risk approach to purchasing this product, so it is worth checking there as well.

If you need further assistance, please call us on +44 1452 380999 or email us.

Hyundai

Instructions

Turbo Inlet for Hyundai i20N

Warranty

Warranty Infomation

The majority of Forge Motorsport products come with a limited lifetime warranty (brakes pads excluded). All warranty claims must be accompanied by the original proof of purchase to enable us to help you. Failure to supply this proof will result in your claim or enquiry being denied.

For further information, please call our customer service team on +44(0)1452 380999 or email info@forgemotorsport.co.uk.

Do not use aggressive (acidic) car cleaning products, particularly traffic film remover solutions or shampoos to clean your intercooler, radiator, or oil cooler. The use of these products can damage Forge Motorsport cooling systems and invalidate your warranty. These are often found at car washes. A light, warm, soapy solution (free of harsh acidic cleaning compounds) should be used to clean you cooler and thoroughly rinsed away. We recommend that you should inspect your product on a regular basis for bent and/or crushed fins. Any bent fins should be carefully straightened to allow ambient air to pass through the core face. At the time of installing your Forge radiator, an approved coolant must be used and added to the coolant system. Be sure you never mix coolant and always use distilled water.

This warranty does not apply to any defect in the goods arising from fair wear and tear, wilful damage, accident, negligence by you or any third party, use otherwise than as recommended by the supplier, failure to follow the supplier’s instructions, or any alteration or repair carried out without the supplier’s approval.

Shipping

Shipping

UK Mainland

Next day delivery applies to orders processed before 12 noon Monday to Friday, subject to stock availability and geographical restrictions. 'Next day' refers to next working day. We cannot guarantee next day delivery for orders placed after this time. Whilst we endeavour to honour our next day service, next day delivery cannot be guaranteed due to other extenuating circumstances. Full details

Delivery is free of charge for all orders £200 (ex VAT) or over. Products are sent by standard DPD service which is usually a next day service, but can take 2 days in transit. We reserve the right to ship smaller, lower value items via Royal Mail or any other service. (Not including Scottish Highlands, Scottish Isles, Northern Ireland, Guernsey, Jersey, and Isle of Man where charges will vary).

Europe and Worldwide

Delivery service charges will vary depending on the quantity of product ordered, the related parcel size, and destination postcode. Live shipping rates will be calculated at checkout using ShippyPro and dependent on criteria, you will be given the option of DHL, DPD, or FedEx courier services.

Shipping into the EU - Duty Charge Information

All Forge products are sold with a Delivery Duty Unpaid (DDU) status and an import tariff may apply to your order. Customers will be contacted by the Customs and Excise authority in the destination country regarding payment prior to delivery, and it is important that correct contact telephone number and email information be submitted with the order to facilitate this part of the delivery process. Some couriers are charging an admin fee for shipping into the EU.

If we detect at checkout that you are located within the European Union (EU), you are eligible for a contribution towards your import duty and tax payments. We can add an additional 20% on the total cost of your order, we will then pay the duty and tax costs above your contribution. This offer will ensure the price you pay at checkout is the total you pay, with no additional charges. It will also ensure you have the fastest possible delivery, with no delays. For more information, please see here


Our shipping methods ensure safe and timely delivery of your new Forge products. For further information on cost and delivery times, please contact Forge using the info@forgemotorsport.co.uk email address if you require any more information. We reserve the right to change the delivery service and company at any time.

Forge Motorsport ships via either UPS, FedEx, DHL (primarily for outside of UK), DPD (primarily for UK), or any other courier we chose. Other shipping options may be available for an additional fee over and above the actual shipping costs. Once a product has left our warehouse and is in the possession of the shipping company, any claims must be made directly with that shipper however we can assist with most cases.

FAQ's and other info can be found here.

Expert Answers

Submit Question Cancel
Submitted questions may be published on the website.

Does the i20n need a tune if i install the Turbo Inlet with the induction kit

No software tuning required, the i20n turbo inlet is plug and play.

I have a hyundai i20 1.0t gdi is there any engine mods I can add

Good morning, im sorry we do not have any products available for the platform in question yet.

Hello! What is the inlet diameter of your fmtia11?

76mm bore (3 inch).

Hello, is it possible to buy just the inlet (the aluminum one) of your Turbo Inlet i20N and if so, how much would that cost? Thanks and best regards - Marcus

No, the cast aluminium elbow is only available to purchase as part of a complete turbo intake pipe.
